Radioactive Waste Measurement
Radioactive Waste Measurement instruments use different technologies to quantify the radionuclide content or the mass of a radionuclide (or radionuclides) in waste.
ANTECH Radioactive Waste Measurement instruments cover a range of waste density and waste container sizes including small samples and small cans, drums of different sizes and large boxes and containers.
01 Low Resolution Drum Gamma Scanner, G3410-200
Environmental Monitoring, Exempt waste & VLLW, Gamma, Gamma ray Waste Assay, LLW & greater than Class C waste
The ANTECH Model G3410-200 LRDGS is a transportable Low Resolution Gamma Scanner for the characterisation and measurement of 200 L drums of waste.
02 EMBASSY (Excavator Mounted Bucket Assay System) G3102-4216
Environmental Monitoring, Exempt waste & VLLW, Gamma, Gamma ray Waste Assay, LLW & greater than Class C waste, Mobile In-Situ Measurement Laboratories, Radiation Detection, Radioactive Waste Measurement, Radioactive Waste Measurement
The ANTECH excavator mounted bucket assay system (EMBASSY) model G3102-4216 is a system designed to measure the radioactive contents of an excavator bucket.
03 Wide Range Segmented Gamma Scanner, G3250-220
Exempt waste & VLLW, Gamma, Gamma ray Waste Assay, ILW & high activity waste, LLW & greater than Class C waste, Plutonium & Uranium waste, TRU waste & ILW
The ANTECH G3250-220 Wide Range Segmented Gamma Scanner (WR-SGS) builds on the segmented gamma scanning technique to measure the radionuclide content of waste drums.
04 Universal Neutron Counter, N2000 Series
Neutron, Neutron Waste Assay, Plutonium & Uranium waste, Safeguards, TRU waste & ILW
The ANTECH Universal Neutron Counter N2000 has been designed to provide a state of the art neutron counting capability for nuclear safeguards, waste assay and accounting measurements for special nuclear materials.
06 CHARMS (Characterisation Assay & Radiation Monitoring Station) G3650
Environmental Monitoring, Radioactive Waste Measurement, Radioactive Waste Measurement
CHARMS is a mobile assay and measuring system for making laboratory quality measurements of drums, waste bags and other waste objects in the field.
07 In-Situ Mobile Assay of Gamma Equipment (IMAGE)
Gamma, Gamma ray Waste Assay, ILW & high activity waste, LLW & greater than Class C waste, Mobile In-Situ Measurement Laboratories
The ANTECH IMAGE is a suite of measurement service equipment used for portable assay of all types of waste containers for Gamma radiation. The suite consists of a variety of pieces of equipment: ANTECH ANTCart, ANTECH Portable Drum Turntable, ANTECH Remote Battery Boxes
08 ANTCart
Environmental Monitoring, Gamma, Gamma ray Waste Assay, Integrated Measurement, Materials Inventory, Mobile In-Situ Measurement Laboratories, Radiation Detection, Radioactive Sample Counting & Measurement, Radioactive Waste Measurement, Radioactive Waste Measurement
ANTCart is a rugged, mobile detector platform designed to position and mount High Purity Germanium (HPGe) and other detectors for measurements of drums, boxes and large containers.
Active Well Coincidence Counter, N2442
Materials Inventory, Neutron, Neutron Waste Assay, Plutonium & Uranium waste, Safeguards, Safeguards
The ANTECH Model N2442 Active Well Coincidence Counter (AWCC) is a transportable high efficiency neutron counter for the measurement of plutonium and uranium.
Active-Passive Drum Monitors (Differential Die Away), N2240 Series
Exempt waste & VLLW, ILW & high activity waste, LLW & greater than Class C waste, Neutron, Neutron Waste Assay, Plutonium & Uranium waste, TRU waste & ILW
The ANTECH N2240 Series are enhanced efficiency active-passive neutron counters for the measurement of plutonium and uranium in nuclear waste.
Combined Isotopic and Plutonium Scrap Multiplicity Monitor, B2308
Combined, Combined Waste Assay, Integrated Measurement, Plutonium & Uranium waste, Safeguards, Safeguards, TRU waste & ILW
The ANTECH B2308 Combined Isotopic and Plutonium Scrap Multiplicity Counter for cans quickly and accurately determines the plutonium content of Special Nuclear Materials (SNM), scrap and residues.
De-Randomising Mixer Buffer Counter, N1081
ILW & high activity waste, Neutron, Neutron Waste Assay, Plutonium & Uranium waste, Safeguards, Safeguards, TRU waste & ILW
The ANTECH N1081 De-Randomising Mixer Buffer provides useful test and diagnostic information for multi-counting chain neutron detectors by determining independent software readable neutron totals counting for each input counting chain and statistical data analysis for each counting channel.
Drum Decommissioning Piece Monitor, N2024-220
Materials Inventory, Neutron, Neutron Waste Assay, Plutonium & Uranium waste, TRU waste & ILW
The N2024-220 Decommissioning Piece Monitor is a transportable efficient neutron assay instrument for the monitoring of intermediate level Plutonium Contaminated Material (PCM) waste arising from decommissioning operations.
Far Field Gamma Monitor for drums and small objects, G3620-340
Environmental Monitoring, Gamma, Gamma ray Waste Assay, Remote handled waste
The ANTECH Model G3620-340 Far Field Gamma Monitor is the basic assay system for drums and small objects using far field gamma ray measurement geometry.
Far Field Gamma Monitor, G3601
Environmental Monitoring, Gamma, Gamma ray Waste Assay, Remote handled waste
The Model G3601 Far Field Gamma Monitor is a generic design that can be supplied in a number of different configurations.
Fuel Element Debris Monitor, G3651
Gamma, Gamma ray Waste Assay, ILW & high activity waste, Remote handled waste
The ANTECH Model G3651 Fuel Element Debris (FED) Monitor is a heavily shielded and collimated far field measurement instrument originally designed for the measurement of highly radioactive fuel element components and debris from UK MAGNOX reactors.
High Efficiency Passive Neutron Drum Monitor, N2223-220
ILW & high activity waste, LLW & greater than Class C waste, Neutron, Neutron Waste Assay
The ANTECH N2223-220 High Efficiency Passive Neutron Drum Monitor a high detection efficiency measurement system for the determination of plutonium mass in intermediate, transuranic or low level waste using passive neutron total coincidence or multiplicity counting, with a high detection efficiency.
High Sensitivity Large Sample Calorimeter, CP264-0420
Calorimetry, Calorimetry Waste Assay, Safeguards, TRU waste & ILW
The ANTECH CP264-0420 High Sensitivity Large Sample Calorimeter is applicable to a wide range of plutonium measurement requirements.
High Sensitivity Large Sample Calorimeter, CV364-1490
Calorimetry, Calorimetry Waste Assay, Safeguards, Safeguards, TRU waste & ILW
The CV364-1490 Calorimeter is transportable without compromising measurement accuracy so that it may be moved to the measurement site.
High Sensitivity Large Sample In-Line (Glove Box) Calorimeter, CA503-260
Calorimetry, Calorimetry Waste Assay, Plutonium & Uranium waste, Safeguards
The design of the demountable CA503-260 High Sensitivity In-Line (Glove Box) Calorimeter is based around a sample well that maintains glove box integrity.
Low Level Waste Segregation and Sentencing System (QED), G3400-220
Exempt waste & VLLW, Gamma, Gamma ray Waste Assay, LLW & greater than Class C waste, Plutonium & Uranium waste
The G3400-220 Low Level Waste Segregation and Sentencing System is designed to assist radioactive waste generators and assay specialists with the task of identifying, quantifying, and sorting radioactive wastes.
Neutron Time Correlation Analyser (TCA), N1003
ILW & high activity waste, Neutron, Neutron Waste Assay, Plutonium & Uranium waste, Safeguards, Safeguards, TRU waste & ILW
The ANTECH N1003 Series Neutron Time Correlation Analyser (TCA) is a comprehensive multiplicity counter for the passive neutron analysis of plutonium.
Passive Neutron and Gamma ray Multiplicity Drum Monitor, B2307-220
Combined, Combined Waste Assay
The ANTECH Model B2307-220 Passive Neutron and Gamma ray Drum Monitor is an integrated system based on combining the N2221-220 Passive Neutron Drum Monitor with a Plutonium/Uranium isotopic gamma ray scanning instrument such as the G3501.
Passive Neutron Drum Monitor, N2221-220
ILW & high activity waste, LLW & greater than Class C waste, Neutron, Neutron Waste Assay
The ANTECH N2221-220 Passive Neutron Drum Monitor is a comprehensive measurement system for the determination of plutonium mass in intermediate, transuranic or low level waste using passive neutron total coincidence or multiplicity counting.

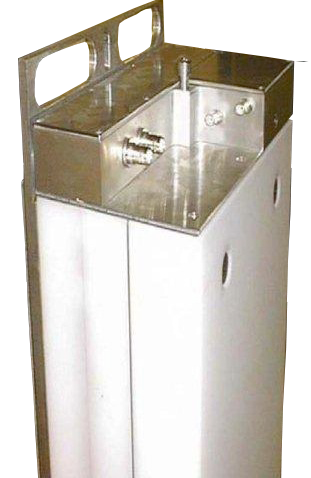

Passive Neutron Slab Counter & Curium Monitor, N2004
Neutron, Neutron Waste Assay, Plutonium & Uranium waste, Safeguards
The N2004 Passive Neutron Slab Counter & Curium Monitor is a simple, non-quantitative neutron slab counter for the detection of curium contamination in waste drums, boxes or crates.
Plutonium Isotopic Spectrometer, G3501
Gamma, Gamma ray Waste Assay, Integrated Measurement, Materials Inventory, Safeguards, Safeguards, Special Measurement Applications
The ANTECH G3501 Plutonium Isotopic Ratio Spectrometer is a comprehensive measurement system for the determination of plutonium isotopic ratios.
